Jotul Rangeley F50TL & Carrabasett F55 Glass Kit: 224158-AMP

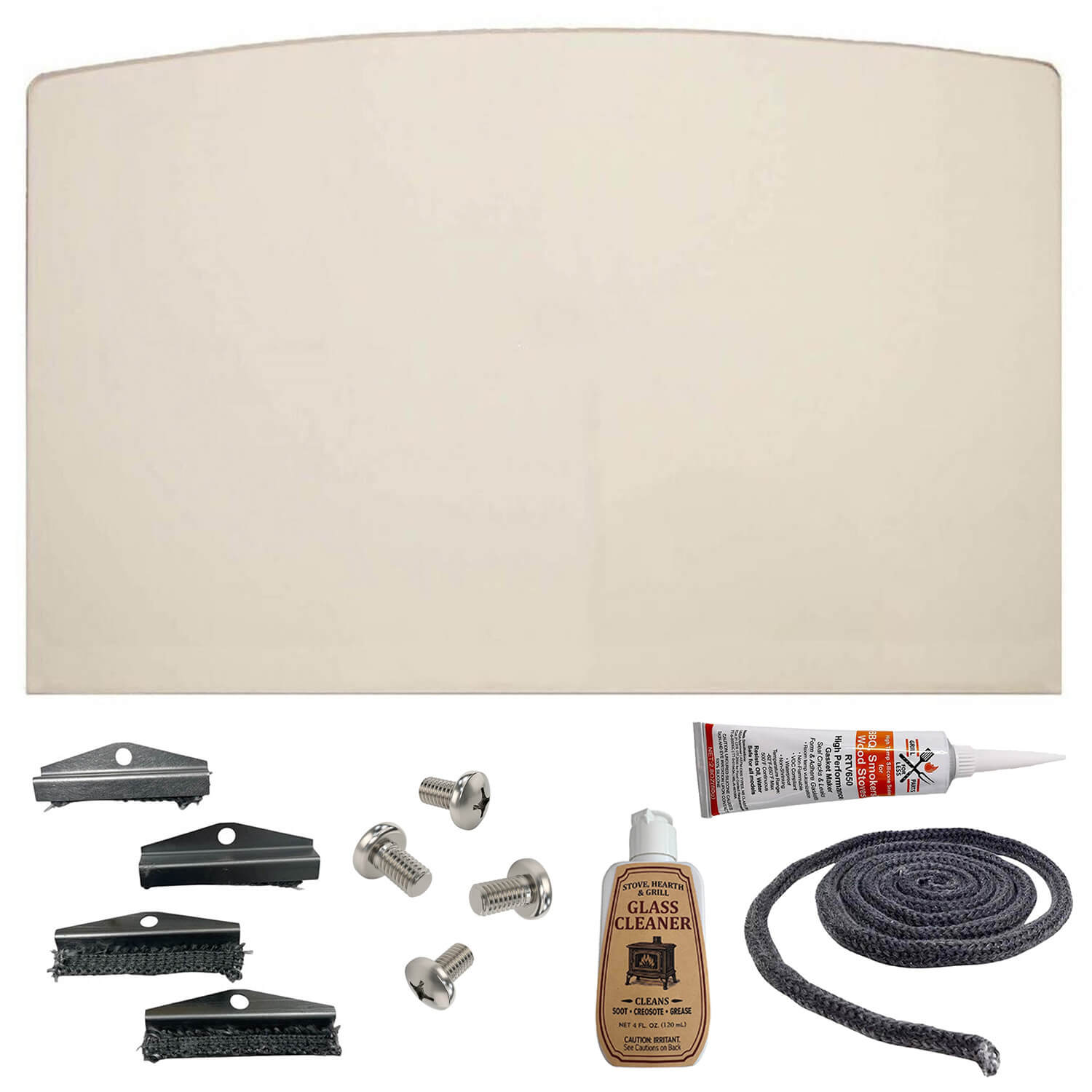

This is a replacement glass for Jotul Rangeley F50TL, Carrabasett F55 Wood Stoves. The measurements are 16-3/8" x 11-3/8" with a top arch. Our replacement glasses are made with pyroceramic glass that with stands high temperatures. The kit includes the glass, gasket, cement, glass clips, hardware, and glass cleaner.

A Note About Our Glass: Unlike some manufacturers, we do not use tempered glass. Tempered glass should NEVER be used in a wood fuel stove, it is not suitable for high heat use. Our glass is made to resist very high temperatures up to 1,400° F / 760° C with low thermal expansion.

Replacement For Part Number:

• 224158

These are all of the confirmed compatible units for this product. Where To Find Your Make & Model

Check these against the part you are replacing before ordering. If a dimension does not match, contact us and we will confirm the fit.

This product is a kit containing 2 total items.

Component Technical Specs

Open a part to see its specifications.

1 xJotul Rangeley F50TL, Carrabasett F55 Wood Stove Glass 16 1/4" x 11 3/8" , 224158

SKU 224158-AMP (opens in new tab)

Quantity In Kit	1
Length (in)	16 ¼"
Width (in)	11 ⅜"
Thickness (in)	0.188"
Max Temp (F)	1400
Maximum Height	11-3/16" (289 mm)
Maximum Width	16-3/8" (413 mm)
Weight	3.50 lbs

1 xJotul Wood Stove Glass Installation & Maintenance Kit For 224158

SKU INSTALLATION KIT FOR 224158 (opens in new tab)

Quantity In Kit	1
Weight	14.5 oz

• Always use the factory recommended gaskets and fasteners to secure the glass in your stove. Some of our glass comes with gasket, others do not, please order accordingly.
• Every stove is different, when removing your old glass, pay attention to the system your stoves uses to secure the glass. Take pictures of your old glass in stages as you remove it from the stove so that you have a reference of how the new glass needs to be reinstalled.
• Use caution when tightening down the hardware. Fasteners should hold the glass in place. Think “snug” but not “tight”. The system must allow for expansion as the glass is heated. Overtightening fasteners, allowing the glass to “float” or move around, or allowing any metal on the door system to touch the glass will most always result in the glass breaking when the stove is heated.
• A basic rule with stove glass:
  • The channels the glass is mounted in should be clean, flat, and free of debris.
  • Gasket material provides an airtight seal where the glass and stove meet, this prevents the glass from making direct contact with any metal on the stove.
  • Many stoves are equipped with and “air wash” to help keep the glass clean. This is usually accomplished by removing a section of the glass gasket at the top or the bottom of the glass. If you see a section of gasketing “missing” this is probably why.
• When handling stove glass, wear gloves to prevent oils from your skin making contact with the glass. Gloves will also reduce the chance of any glass or gasket manufacturing debris from being absorbed into your skin.

Please open and inspect your glass to make sure that it has arrived intact. Damage Claims for broken glass from shipping MUST be made within 72 hrs of delivery, no exceptions. Glass breaking from after installation is NOT covered under warranty, this is due to improper installation. If you do not feel comfortable replacing your glass, please contact a licensed technician. For instructions on proper glass installation, please read the instructions provided in the instructions tab.
