Product title:

Comfort Bilt Upper Heat Shield/Baffle Plate (HP21): CB-HEAT-SHIELD-HP21

Product rating:
Product price:
$89.99
Product SKU ! CB-HEAT-SHIELD-HP21
Product availability: In Stock
Bullet point features
Buy Now Pay Later

Description

ComfortBilt Pellet Stove Upper Heat Shield/Baffle Plate for the HP21. The Heat Shield/Baffle Plate does several things. It protects the heat exchanger from damage that can be caused by excessive heat.  It also helps to reflect and retain heat in the firebox. Burning your unit without the heat shield in place can damage the heat exchanger.

Compatible Models

    ComfortBilt

  • HP21

Technical Specs

Height 4-3/4"
Width 19-1/8"

Instructions

Install Instructions For Comfort Bilt Upper Heat Shield/Baffle Plate (HP21): CB-HEAT-SHIELD-HP21

Install Instructions:

1.) Unplug the power cord from the stove.

2.) Open both side panels and the main load door.

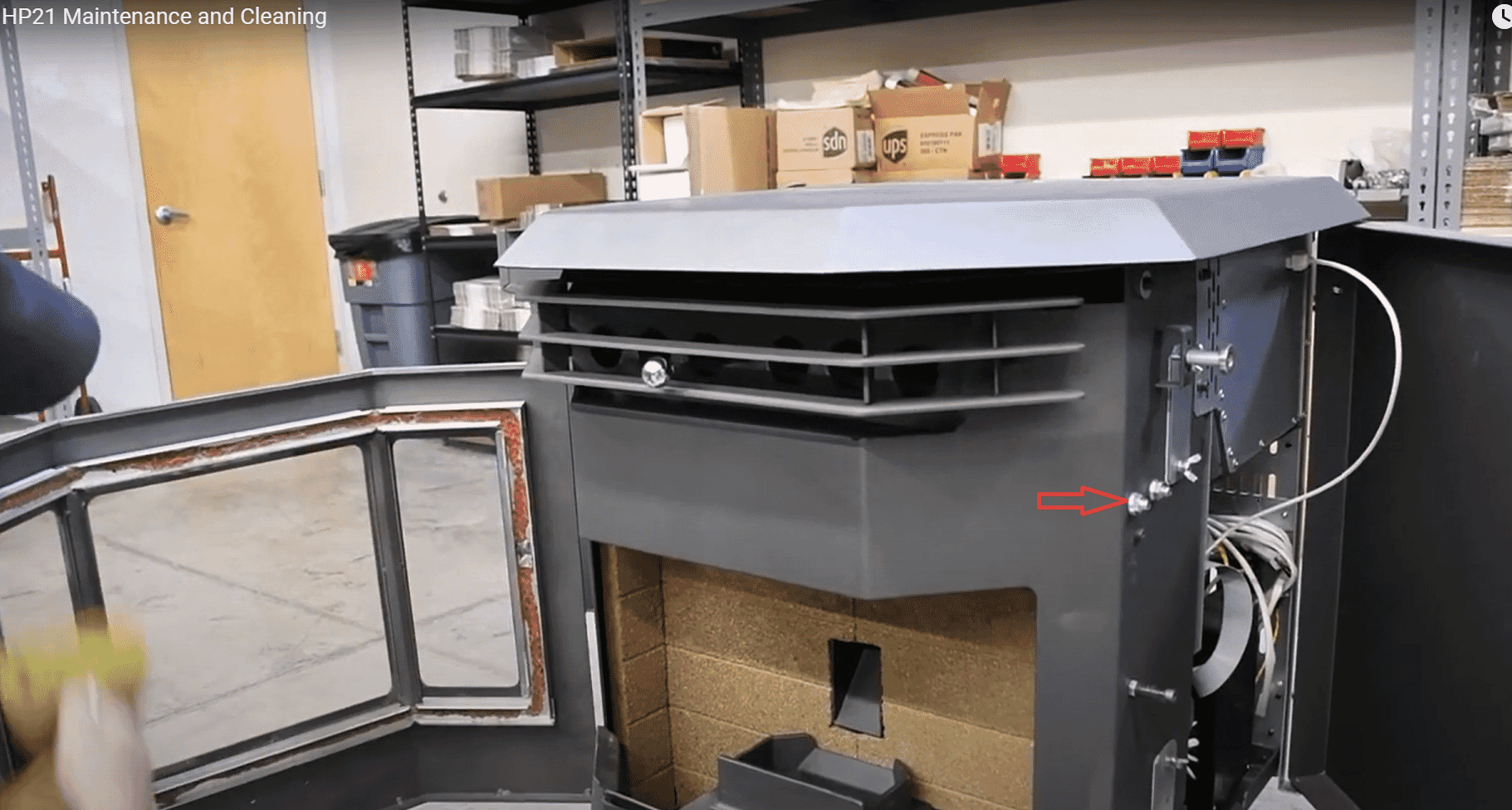

3.) Locate the bolts holding the Heat Shield/Baffle Plate in place and remove them while supporting the Baffle Plate (Click here to view bolt location).

4.) Remove the old Baffle Plate and reposition the new Baffle In place.

5.) Reinstall the previously removed bolts.

6.) Close the side panels and main load door.

7.) Plug in the unit's power cord.



Troubleshooting

Helpful Tips:

The Heat Shield/Baffle Plate is an important part of your stove. It protects the heat exchanger from damage that can be caused by excessive heat. It also helps to reflect and retain heat in the firebox. Burning your unit without the heat shield in place can damage the heat exchanger. The baffle plate should be visually inspected every time the interior of the firebox is cleaned. If the shield becomes warped or you see cracks forming this part should be replaced.

Click here to view ComfortBilt's Guide to Stove Cleaning!


Warranty

Unfortunately, sometimes products do not work like they are supposed to. We offer a 90 day warranty on manufacturer defects. Some manufacturers make this a very simple and easy process unfortunately others do not. Items must be used in accordance with the manufacturers guidelines to qualify for warranty replacement. Please be advised that warranty claims for these parts may take up to 4 weeks for processing, and customers must cover shipping.
